(Arduino) Robotics |
|
 |
||
| Make | Resources and HINTs [Helpful Intentionally Nuanced Tidbits] | ||
0 |
Make 00 - Maker Journal | ** Check if you need to install programs. ** Download and install the Fritzing and Arduino programs. These are very useful tools for designing, documenting and programming your robot. [ These programs are free. However, the developers encourage donations so they can continue to work on these projects ]. |
|
1 |

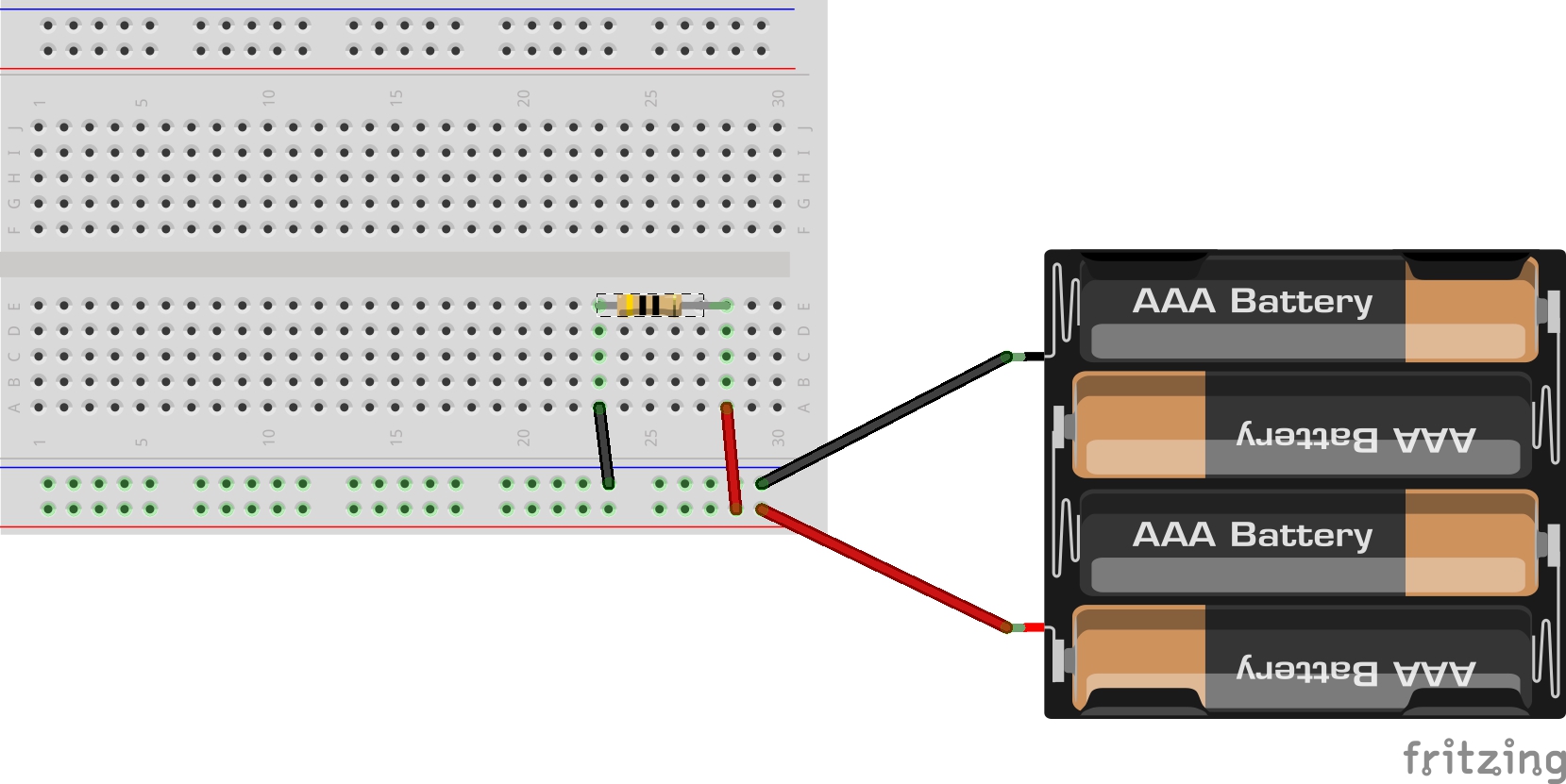

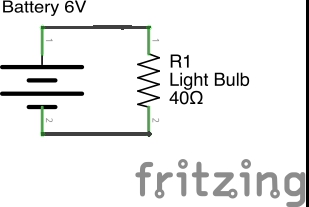

Make 01 - Light Circuits | HINT: breadboard and schematic diagrams for connecting breadboard and lightbulb (modeled as a resistor)
|
|
| Crimp Tool Information | Guide: How to use a crimper tool | ||
2 |
Make 02 - LED Circuits |
Diode Model: Water analogy
|
|
3 |
Make 03 - Switch | If you want to use the limit switch you will need to solder wire to it. Advanced: How to debounce your switch
|
|
| Soldering Information | Guide: Weller Soldering Guide [Important Information] Instructables (videos+): How to Solder and Different Solder Tips
|
||
4 |
Make 04 - Arduino Programming | Arduino Programming Notebook Document Programming Concepts Video Tutorial Example Sketch: Blink (File > Open Examples > Basics). Note: In the Ardunio community your programs are referred to as sketches.
|
|
5 |

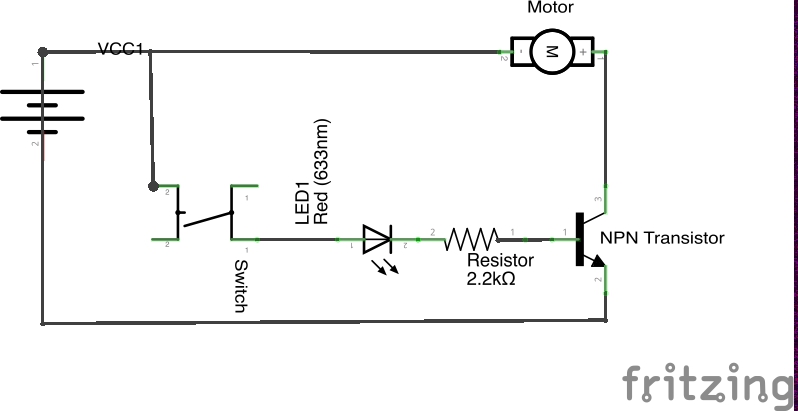

Make 05 - Transistor NPN | NPN bipolar transistor model: Information and water analogy JFET and MOSFET models HINT: breadboard and schematic diagrams for a simple NPN transistor switch
|
|
6 |

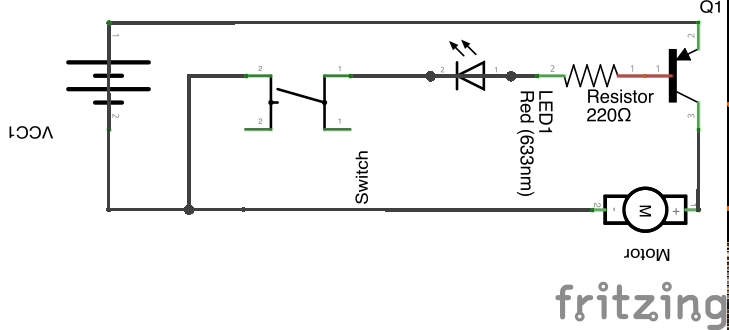

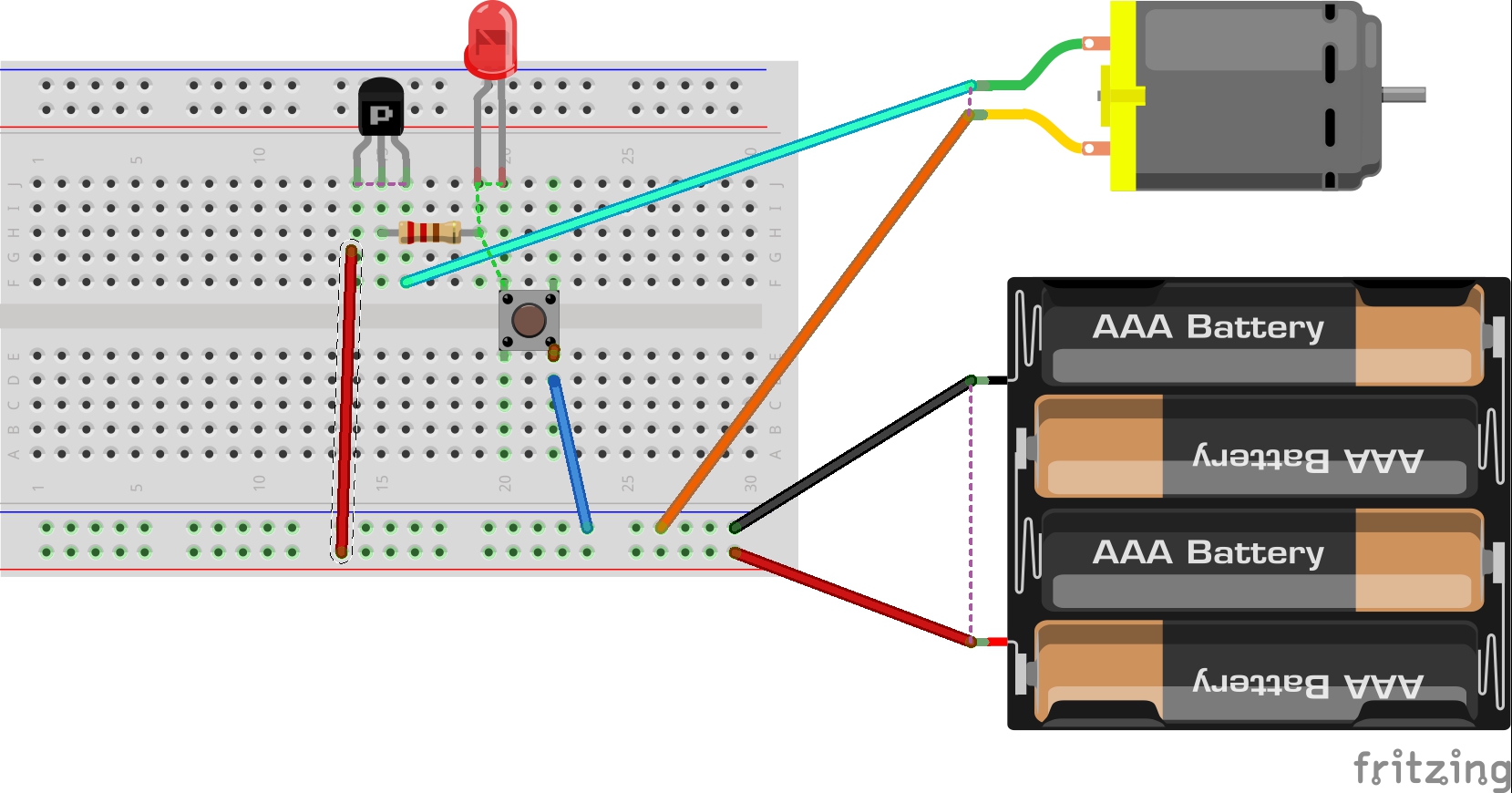

Make 06 - Transistor PNP | NPN bipolar transistor model: Information and water analogy Video: Difference between NPN and PNP JFET and MOSFET models Hint: breadboard and schematic diagrams for a simple PNP transistor switch
|
|
7 |

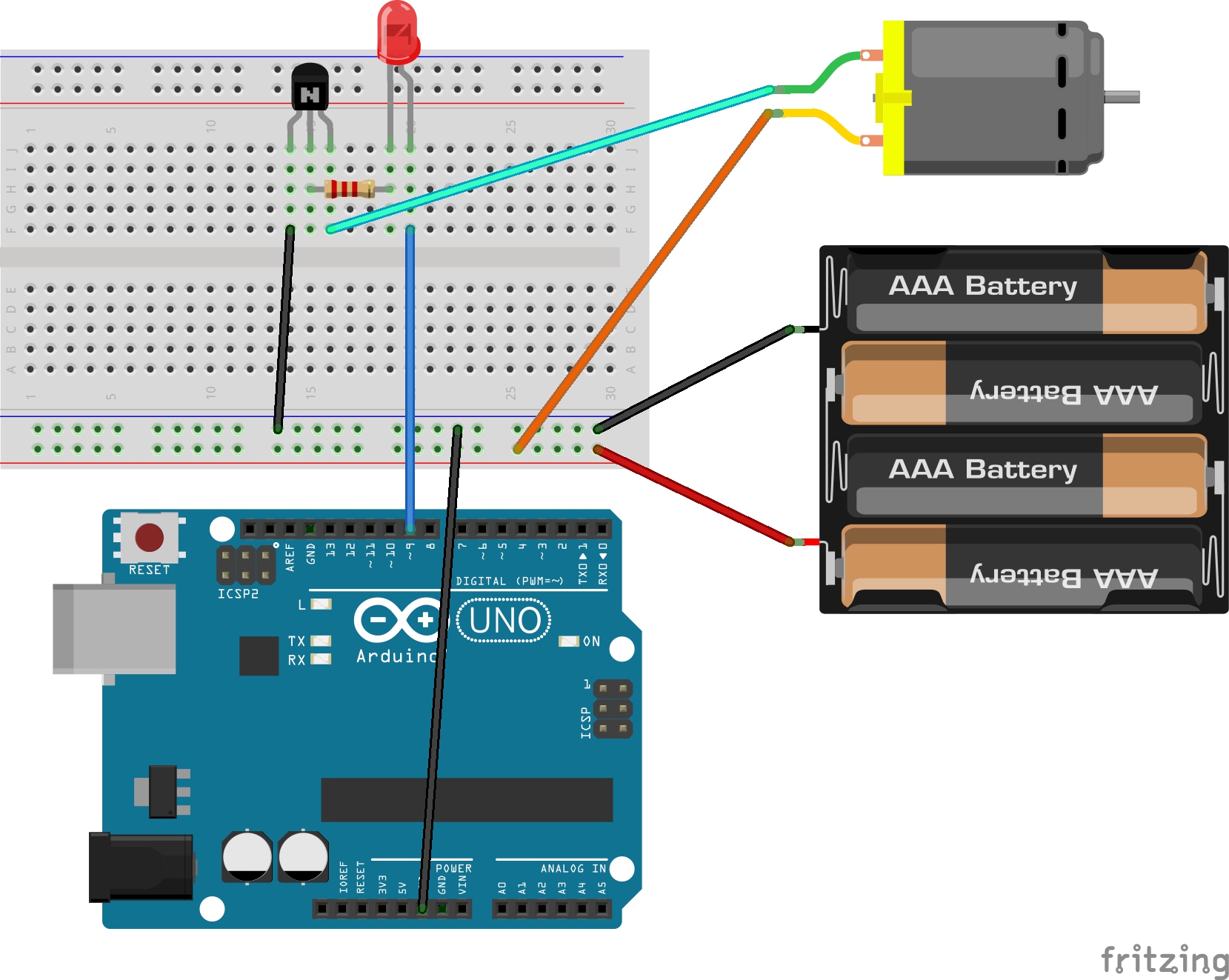

Make 07 - Transistor Digital | Tutorial: Debounce a switch input Hint: breadboard and schematic diagrams for Arduino controlled NPN switch
|
|
8 |

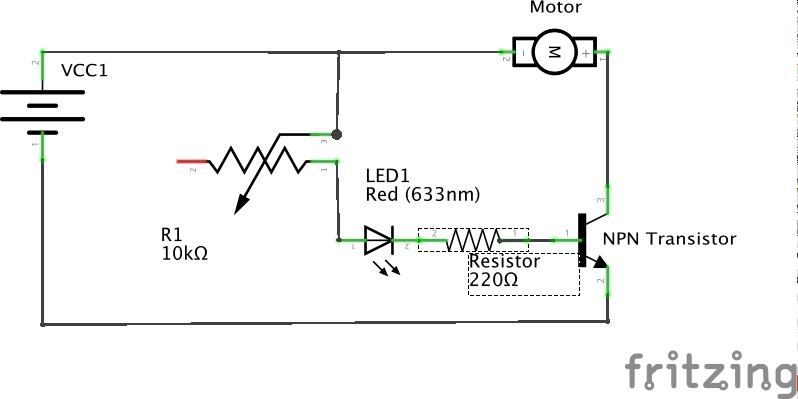

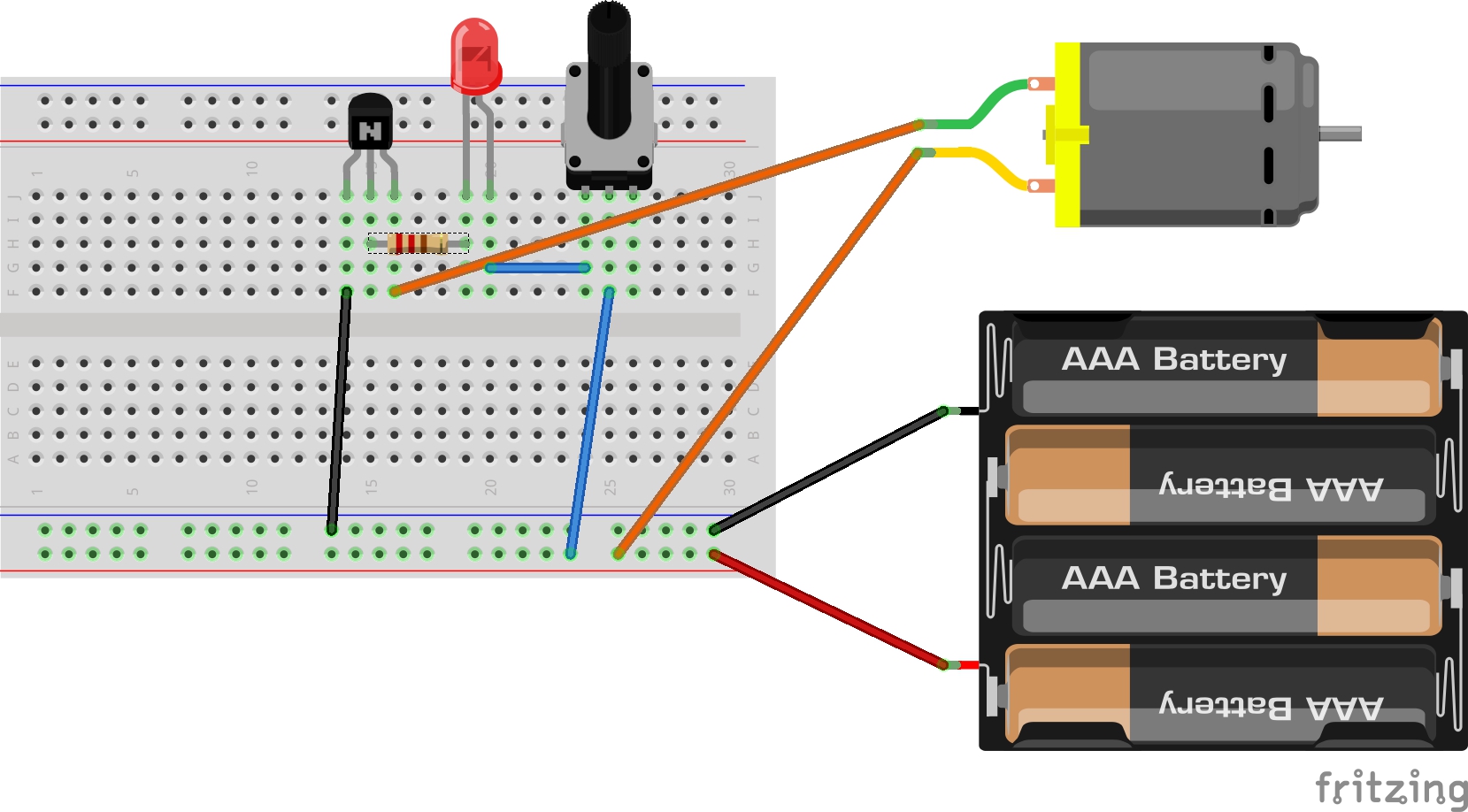

Make 08 - Analog Control | Read Soldering Information (above) before soldering Tutorial: How a potentiometer works Hint: breadboard and schematic diagrams for analog potentiometer interface
|
|
9 |
Make 09 - Digital Control | Tutorial: PWM programming
|
|
10 |

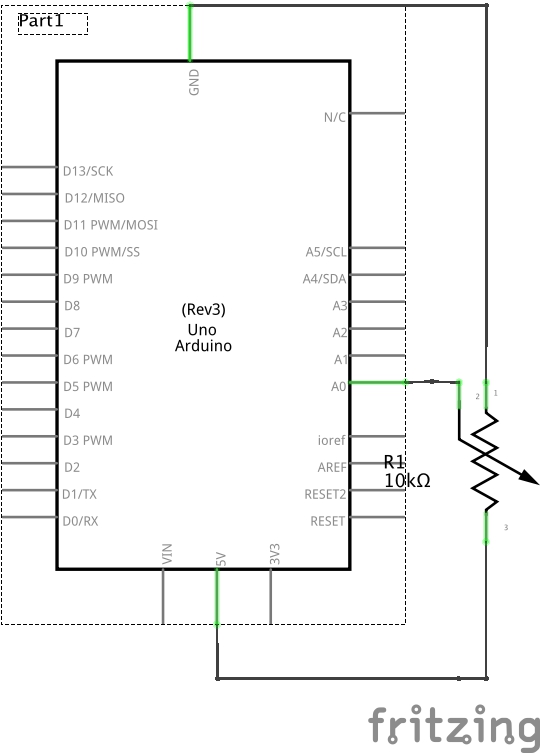

Make 10 - Program I/O | Tutorial: Read analog input (use to control PWM output) arduino serial Example Sketch: modify Blink to use analog value to change blink rate or brightness Hint: breadboard and schematic diagrams for Arduino potentiometer interface
|
|
11 |
Make 11 - Build Chasis | Read Soldering Information (above) before soldering Assembly instruction sheet [ example motor datasheet for similar motor/gearbox ] |
|
12 |
Make12 - Motor Controller | Tutorial: Hooking up motor controller (note signal control table) Datasheet: SN754410 Quadruple Half-H Driver Hint: Breadboard diagram for connecting one motor with example sketch. Switch is optional. Note: power supplied to Arduino and motor Vcc is different.
|
|
13 |
Make 13 - Sensor IR | Tutorial: How to hook up IR sensor Datasheet: IR Sensor (GP2Y0A21YK0F) Hint: An example sketch to test the IR sensor using the serial monitor.
|
|
14 |
Make 14 - Sensor Ultrasonic | Information: How an ultrasonic sensor works [optional hookup directions] Tutorial: How to programming a ultrasonic sensor with an example sketch.
|
|
15 |
Make 15 - Servos | Tutorial: Arduino Sweep and Single Servo examples |
|
16 |
Make 16 - Speaker | Tutorials: Arduino Melody and Play Melody examples Sparkfun experiment: Using a piezo buzzer Reference: Tone() |
|
Auxilary Make Projects
17 |
Make 17 - Serial Communication | Tutorial: Serial Input and serial read Tutorial: Complete lesson on serial communication
|
|
18 |
Make 18 - Xbee Control | Tutorial: Xbee shield hookup Example Sketch: Xbee control
|
|
19 |
Make 19 - Xbee Control | Quick Start Guide Tutorial: Joystick assembly Example Sketch: Joystick control (zip file)
|
|
